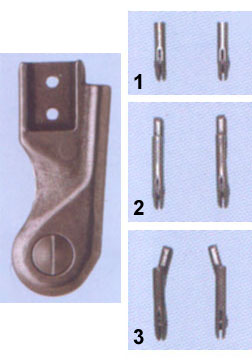

(1)
Stainless Steel System Ankle Joints - Straight &
Contoured |
|
Contoured medial joint,
straight lateral joint, with compression spring |
Side For bar
width
Head Ø
Clevis width
Length from joint center
left 16 mm
26 mm
2.5 mm
57 mm
right 16 mm
26 mm
2.5 mm
57 mm
left 20 mm
28 mm
3.0 mm
66 mm
right 20 mm
28 mm
3.0 mm
66 mm |
|
(2)
Stainless Steel System Ankle Joints - Straight |
|
Straight medial
and lateral joints, with compression spring |
For
bar width
Head Ø
Clevis width
Length from joint center
16 mm
26 mm
2.5 mm
57 mm
20 mm
28 mm
3.0 mm
66 mm
|
|
(3)
Stainless Steel System Ankle Joints - Contoured |
|
Contoured medial and lateral joints,
with compression spring |
For
bar width
Head Ø
Clevis width
Length from joint center
16 mm
26 mm
2.5 mm
57 mm
20 mm
28 mm
3.0 mm
66 mm
|
|
(4) Bearing Nut |
|
Hardened
Steel |
For
bar width
Insertion Ø
Shank length
Thread
16 mm 7.0 mm
6.8 mm
M5
20 mm
9.0 mm
7.2 mm
M6 |
|
(5) Slotted Truss Head Screw |
|
Stainless steel |
For bar
width
Thread
Head Ø
Total length
16 mm M5
12 mm
9.5 mm
20 mm
M6
14 mm
10 mm |
|
(6) Compression Spring |
For bar
width
Outside Ø
Length
16 mm 4.7 mm
31 mm
20 mm 5.5 mm
35 mm |
|
(7) Set Screw with Slot and Peg |
|
Stainless steel |
For bar
width Thread
Total length
16 mm M6
11 mm
20 mm M7
13 mm |
|
(8) Ball |
|
Stainless steel |
|
For 16 mm
bar width |
|
|
(9) Compression Piece with Ball |
|
For 16 mm
bar width |
|
|
(10) Shim Plate |
Stainless steel
Used in System Joints to compensate for the difference
in thickness between 4 mm thick side bars and 5 mm
thick connections. |
For
bar width
Plate width
16 mm 12 mm
20 mm
15 mm |
|
(11) Philips Oval Countersunk Head Screw |
|
Stainless
steel |
