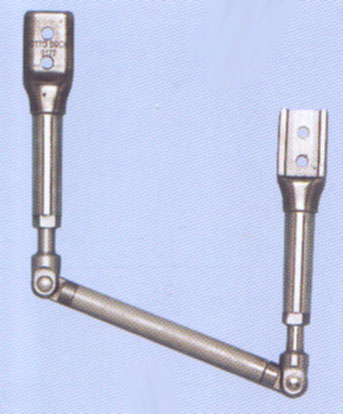

(1) Telescoping Stainless Steel Full System Shoe
Stirrup |
|
With
joint bushing. |
For bar
width Bar
length
Bushing length/inner Ø
16 mm 105 mm
80/6 mm
20 mm
105 mm
100/8 mm |
|
(2) Joint Bushing |
|
Stainless
Steel |
For
bar width
Outside Ø
Wall
16 mm
10 mm
2 mm
20 mm
12 mm
2 mm
|
|
(3) Compression Spring |
|
Stainless
steel |
|
|
|
(4)
Philips Oval Countersunk Head Screw |
|
Stainless
Steel |
|
|
(5) Shim Plate |
Stainless steel
Used in System Joints to compensate for the difference
in thickness between 4 mm thick side bars and 5 mm
thick connections. |
For bar
width
Plate width
16 mm
12 mm
20 mm
15 mm |
